Heating Dry Bath
DH-10 dry bath is a constant temperature metal bath device controlled by a microcomputer, with high temperature control accuracy and good parallelism of sample preparation. It can replace the traditional water bath device. It can be widely used in the cultivation, preservation and reaction of various samples, and the application industry covers medicine, chemical industry, food. Safety, quality inspection, environment, etc.
- Description
- Specifications
- Paper
- Video
DH-10 dry bath is a constant temperature metal bath device controlled by a microcomputer, with high temperature control accuracy and good parallelism of sample preparation. It can replace the traditional water bath device. It can be widely used in the cultivation, preservation and reaction of various samples, and the application industry covers medicine, chemical industry, food. Safety, quality inspection, environment, etc.
1. LED display, clean and simple interface.
2. The instrument has fast heating speed, uniform heating, accurate temperature control, high stability, low energy consumption and no noise.
3. Built-in temperature deviation calibration function, automatic fault detection and buzzer alarm function.
4. Built-in over-temperature protection device, which is safer and more reliable to use and prolongs the service life of the machine.
5. The product design is compact and tight, occupying a small range of space, bringing more freedom and convenience.
6. A variety of module options, replacement, easy to clean and sterilize various test tubes.
Model | DH-10 |
Temperature Control Range | Room temperature+5℃ ~ 100℃ |
Heating time | ≤ 30 minutes (from 20°C to 100°C) |
Temperature stability (at @40~100℃) | ≤±0.5℃ |
Module maximum temperature difference@40℃ | 0.3℃ |
Module temperature uniformity | ≤±0.5℃ |
Temperature display accuracy | 0.1℃ |
Longest Timing | 99h59min |
High temperature | 100℃ |
Maximum power | 150W |
Product size | 260x220x95mm |
Product weight | ≤2.1kg |

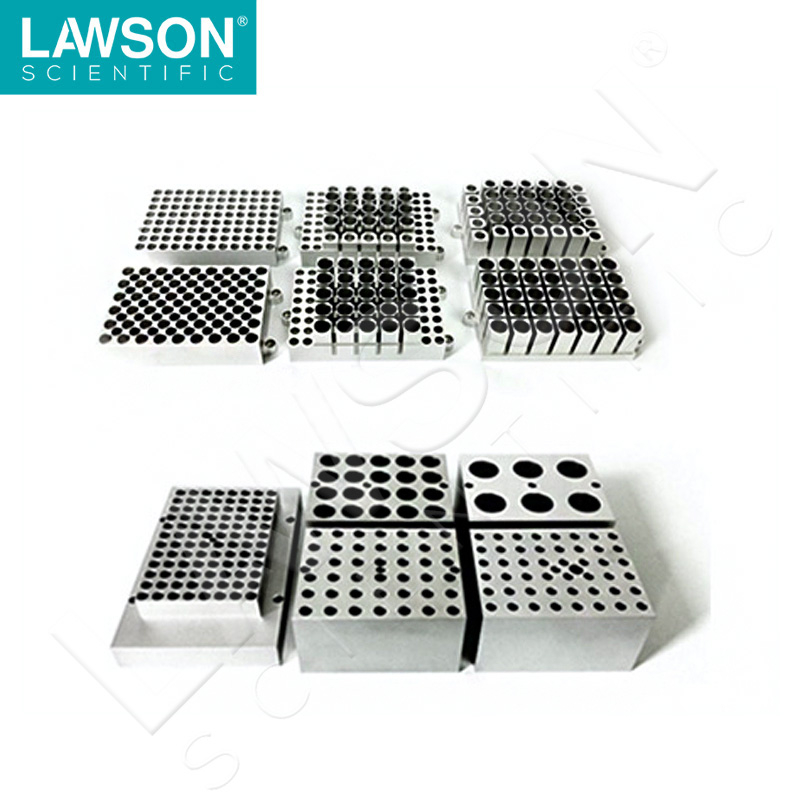

Module model selection: | |||
Model | Pore size and number of tubes | Max temperature | Maximum number of revolutions |
DW30 | 96×0.2mlstandard board | 100℃ | 1500rpm |
DW31 | 54×0.5mlCentrifuge tube | 100℃ | 1500rpm |
DW32 | 35×1.5mlCentrifuge tube | 100℃ | 1500rpm |
DW33 | 35×2.0mlCentrifuge tube | 100℃ | 1500rpm |
DW34 | 15×0.5ml+20×1.5mlCentrifuge tube | 100℃ | 1500rpm |
DW35 | 24×diameter≤φ12mmTest tube | 100℃ | 1200rpm |
DW36 | 32×0.2ml+25×1.5mlCentrifuge tube | 100℃ | 1500rpm |
DW37 | 32×0.2ml+10×0.5ml+15×1.5mlCentrifuge tube | 100℃ | 1500rpm |
DW38 | 103×67×30 (square slot module) | 100℃ | 1500rpm |
DW39 | 96×0.2mlMicroplate ( Flat bottom) | 100℃ | 1500rpm |
DW40 | 24x5ml Centrifuge tube | 100℃ | 1200rpm |
DW41 | 12x15ml | 100℃ | 600rpm |
DW42 | 6x50ml | 100℃ | 600rpm |
DW43 | 15x10ml | 100℃ | 600rpm |
Other non-standard customization | Can be customized | / | / |
host | 1 set |
module | 1 piece |
power cable | 1 root |
Special screwdriver (for removing the module) | 1 set |
user's manual | 1 part |
certificate | 1 part |
Warranty Card | 1 part |
