Heating & Cooling Dry Bath
Cooling Dry Baths DH-20 the microcomputer-controlled constant temperature metal bath device has high temperature control accuracy and good parallelism of sample preparation. It can replace the traditional water bath device and can be widely used in sample preservation and reaction, DNA amplification and electrophoresis pre-denaturation, serum coagulation, etc. The application industry covers medicine, chemical industry, food safety, quality inspection, environment, etc. DH-20 Cooling Dry Baths is a new type of dry thermostat with beautiful appearance and excellent performance.
- Description
- Specifications
- Paper
- Video
Cooling Dry Baths DH-20 the microcomputer-controlled constant temperature metal bath device has high temperature control accuracy and good parallelism of sample preparation. It can replace the traditional water bath device and can be widely used in sample preservation and reaction, DNA amplification and electrophoresis pre-denaturation, serum coagulation, etc. The application industry covers medicine, chemical industry, food safety, quality inspection, environment, etc. DH-20 Cooling Dry Baths is a new type of dry thermostat with beautiful appearance and excellent performance.
1. Blue LCD screen display, clean and simple interface, dual-section time and temperature settings, real-time temperature display, time decrement display.
2. The instrument has fast heating speed, uniform heating, accurate temperature control, high stability, low energy consumption and no noise.
3. Built-in temperature deviation calibration function, automatic fault detection and buzzer alarm function.
4. Built-in over-temperature protection device, which is safer and more reliable to use and prolongs the service life of the machine.
5. The product design is compact and tight, occupying a small range of space, bringing more freedom and convenience.
6. A variety of module options, replacement, easy to clean and sterilize various test tubes.
Model | DH-20 |
Temperature Control Range | -10℃~100℃ |
Heating time | ≤15 minutes (from 20°C to 100°C) |
Temperature stability (at @40~100℃) | ≤±0.5℃ |
Module maximum temperature difference@40℃ | 0.3℃ |
Module temperature uniformity | ≤±0.5℃ |
Temperature display accuracy | 0.1℃ |
Longest Timing | 0~999min |
High temperature | 100℃ |
Maximum power | 250W |
Product size | 270×190×170mm |
Product weight | ≤4.5kg |

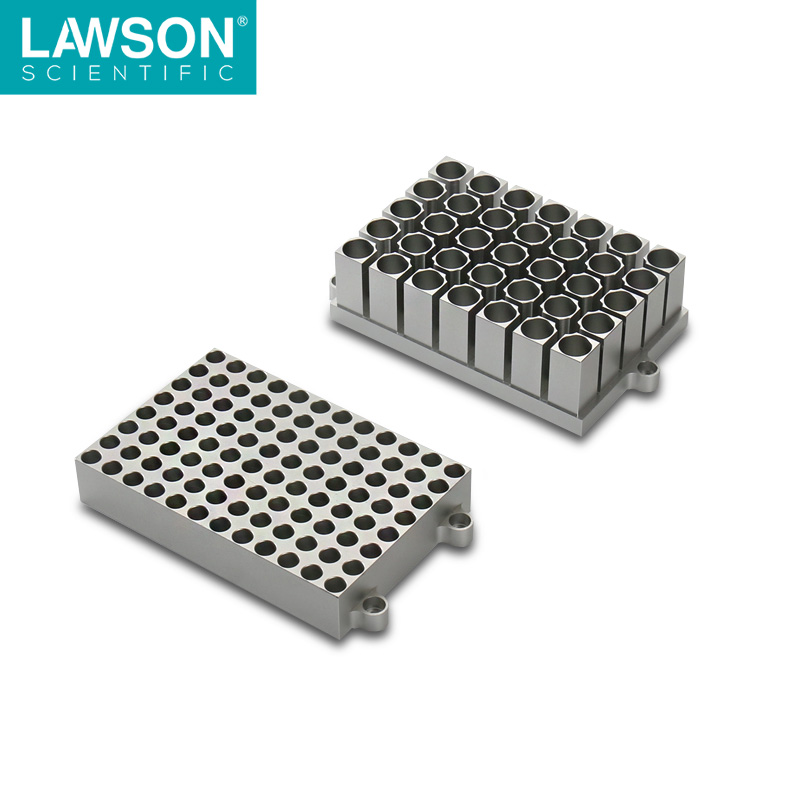

Module model selection: | |||
model | Aperture and number of test tubes | max temperature | max speed |
DW30 | 96×0.2mlstandard board | 100℃ | 1500rpm |
DW31 | 54×0.5mlCentrifuge tube | 100℃ | 1500rpm |
DW32 | 35×1.5mlCentrifuge tube | 100℃ | 1500rpm |
DW33 | 35×2.0mlCentrifuge tube | 100℃ | 1500rpm |
DW34 | 15×0.5ml+20×1.5mlCentrifuge tube | 100℃ | 1500rpm |
DW35 | 24×diameter≤φ12mmtest tube | 100℃ | 1200rpm |
DW36 | 32×0.2ml+25×1.5mlCentrifuge tube | 100℃ | 1500rpm |
DW37 | 32×0.2ml+10×0.5ml+15×1.5mlCentrifuge tube | 100℃ | 1500rpm |
DW38 | 103×67×30 (Square slot module) | 100℃ | 1500rpm |
DW39 | 96×0.2mlELISA plate (flat) | 100℃ | 1500rpm |
DW40 | 24x5ml Centrifuge tube | 100℃ | 1200rpm |
DW41 | 12x15ml | 100℃ | 600rpm |
DW42 | 6x50ml | 100℃ | 600rpm |
DW43 | 15x10ml | 100℃ | 600rpm |
ODM custom made | custom made | / | / |
host | 1 set |
module | 1 piece |
power cable | 1 root |
Special screwdriver (for removing the module) | 1 set |
user's manual | 1 part |
certificate | 1 part |
Warranty Card | 1 part |
