Sonics ultrasonic processor

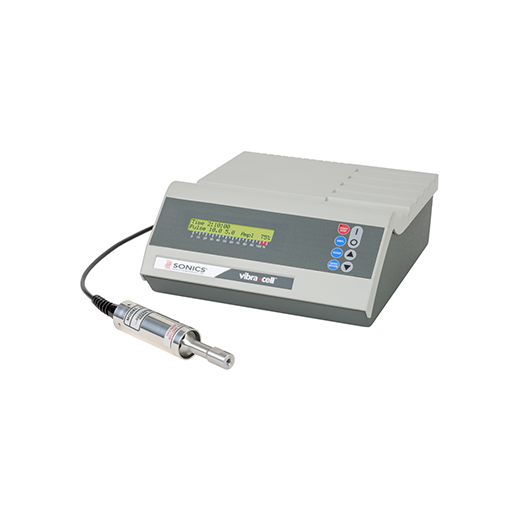

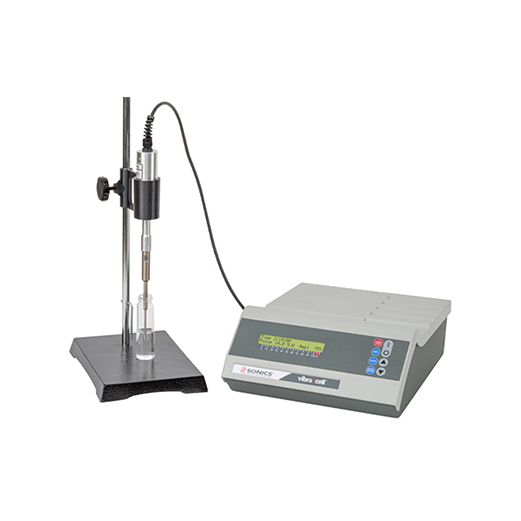

SONICS ultrasonic probe sonicator,VCX 130PB:Features a thumb pulse generator or foot switch for safe handling of various organic and inorganic materials, from 150 microliters to 150 milliliters. Typical applications include biotechnology and pharmaceutical processing, including mixing, dispersion and sample preparation uses.
- Description
- Specifications
- Paper
- Video
SONICS ultrasonic probe sonicator,VCX 130PB:Features a thumb pulse generator or foot switch for safe handling of various organic and inorganic materials, from 150 microliters to 150 milliliters. Typical applications include biotechnology and pharmaceutical processing, including mixing, dispersion and sample preparation uses.
◆Energy monitor
◆Digital wattmeter
◆Automatic tuning
◆Automatic amplitude compensation
◆Microprocessor based
◆Thumb-actuated pulser or footswitch
◆Elapsed time indicator
◆Variable power output control
Model | VCX 130PB |
Frequency | 20KHz |
Pulse excitation device | Key Adjustable |
Timing device | None |
Inverter model | CV188 |
Power | 130W |
Standard horn | Φ6mm |
Standard horn length | 138mm |
Overall size of the horn | 115 x 250 x 320 mm |
Amplifier material | Titanium alloy Ti-6Al-4V |
Standard horn handling capability | Applicable volume 10ml to 50ml |
Optional horn | Φ2mm,Φ3mm |
Amplifier weight | 302g |
Loom cable length | 1.5m |
Crushing capacity | 0.15-50ml |
Duty Cycle | 1-99% |
Power Adjustment Range | Continuously adjustable (20-130w) |
Gap Time | 0.1-99.9s |
Temperature protection setting | none |
Power Amplitude Display | Yes |
Operating frequency range | Energy Monitor Digital Wattmeter Auto Tuning Auto Amplitude Compensation |
Working hours | Microprocessor based - programmable 10 hour timer 1 - 59 seconds independent on/off pulse |
Working Mode | Gap/Continuous |
Power | 220/110V 50Hz/60Hz or unless otherwise required, electricity is required to be sent at 117V, 50/60Hz |
Net weight | 3kg |
Host + transducer weight | 3340g |
ultrasonic generator | 1 set |
soundproof box | choose |
power cable | 1 root |
toolbox | 1 set |
Dedicated crushing cup | choose |
user's manual | 1 part |

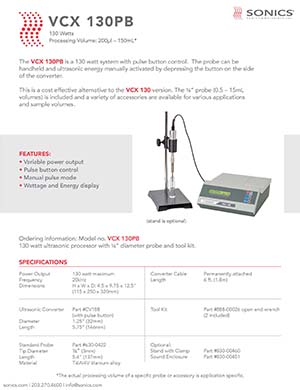

Design page | |

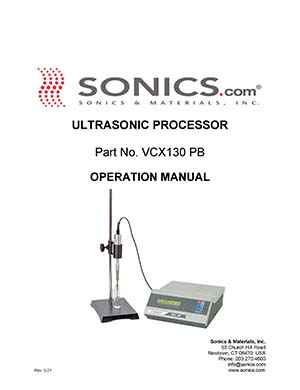

Manual | |
sonics_vibracell_catalog |
