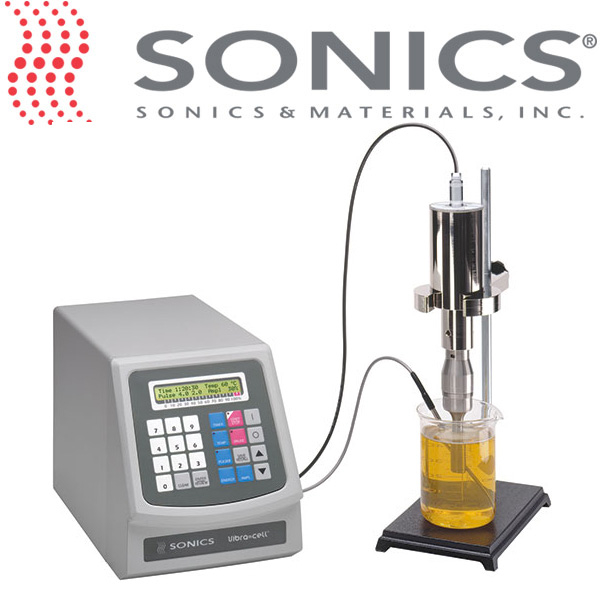

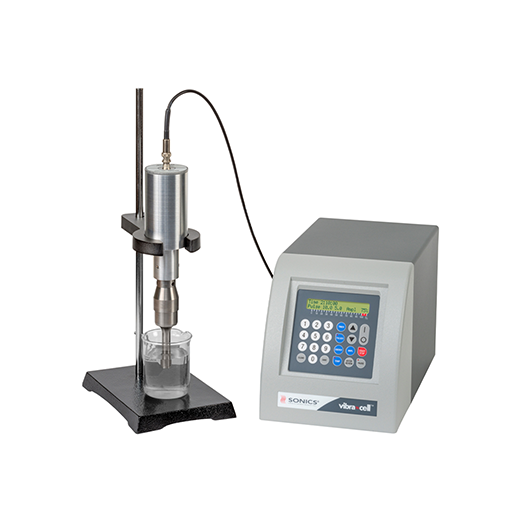

Sonics ultrasonic processor
SONICS Ultrasonic assisted extraction VCX500, can safely handle a variety of organic and inorganic materials, from 250 microliters to 1 liter*. Typical applications include nanotechnology (production of nanoparticulate materials and graphene dispersions), cell lysis, sample preparation, homogenization, ChIP assays, emulsification, depolymerization and depolymerization, and applications in the field of sonochemical liquid handling.
- Description
- Specifications
- Paper
- Video
SONICS Ultrasonic assisted extraction VCX500, can safely handle a variety of organic and inorganic materials, from 250 microliters to 1 liter*. Typical applications include nanotechnology (production of nanoparticulate materials and graphene dispersions), cell lysis, sample preparation, homogenization, ChIP assays, emulsification, depolymerization and depolymerization, and applications in the field of sonochemical liquid handling.

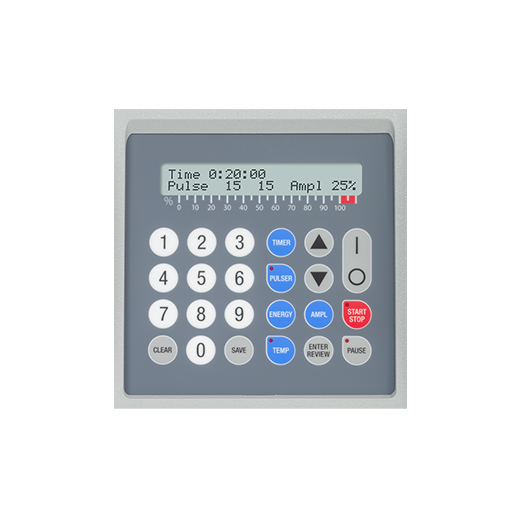

• Programmable
• Variable power output
• 10 hour timer
• Pulse mode
• Wattage and Energy display
• Temperature monitoring
• Energy setpoint

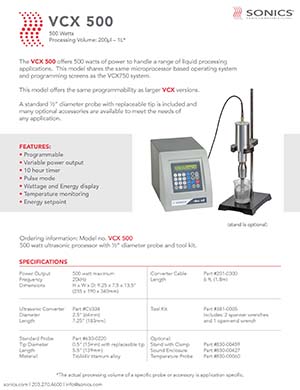

Model | VCX 500 |
Frequency | 20KHz |
Power | 500W |
Sealed Inverter Model | CV334 (lead zirconate titanate crystal piezoelectric inverter) |
Standard horn | Φ13mm |
Standard horn length | 113mm |
Overall size of the horn | 235 x 190 x 340 mm |
Amplifier material | Titanium alloy Ti-6Al-4V |
Standard horn handling capability | 50ml to 250ml |
Optional horn | Φ6mm,Φ10mm |
Amplifier weight | 900g |
Loom cable length | 1.8m |
Crushing capacity | 50ml to 250ml |
Duty Cycle | 1-99% |
Power Adjustment Range | Continuously adjustable (20-500w) |
Gap Time | 0.1-99.9s |
Temperature protection setting | none |
Power Amplitude Display | Yes |
Operating frequency range | Energy Monitor Digital Wattmeter Auto Tuning Auto Amplitude Compensation |
Working hours | Microprocessor based - programmable 10 hour timer 1 - 59 seconds independent on/off pulse |
Ultrasound time | From 1 second to 10 hours |
Working Mode | Gap/Continuous |
Power | 220/110V 50Hz/60Hz or unless otherwise required, electricity is required to be sent at 117V, 50/60Hz |
Net weight | 6.8kg |
Host + transducer weight | 9.6g |
