Electroporator
Electroporation can be used to transfer DNA into competent bacteria, animal and plant cells, and yeast cells. Compared with chemical methods, the electroconversion method can obtain higher conversion efficiency. Compared with other methods, this method has better reproducibility, simple operation, time saving and high introduction efficiency, and has become an indispensable basic technology of molecular biology.
Gene Transfer Instrument LAWSON-2C MicroPulser Electroporator has an integrated design, simple operation and intuitive display. The microprocessor-controlled pulse discharge adopts a man-machine dialogue interface. The operation is simple and intuitive, and the setting range of capacitance and resistance is refined. There is a wider range of options under relevant conditions.
- Description
- Specifications
- Paper
- Video
Electroporation can be used to transfer DNA into competent bacteria, animal and plant cells, and yeast cells. Compared with chemical methods, the electroconversion method can obtain higher conversion efficiency. Compared with other methods, this method has better reproducibility, simple operation, time saving and high introduction efficiency, and has become an indispensable basic technology of molecular biology.
Gene Transfer Instrument LAWSON-2C MicroPulser Electroporator has an integrated design, simple operation and intuitive display. The microprocessor-controlled pulse discharge adopts a man-machine dialogue interface. The operation is simple and intuitive, and the setting range of capacitance and resistance is refined. There is a wider range of options under relevant conditions.
Main features:
◆ High conversion rate - short conversion time and good repeatability;
◆ Free storage - experimental data can be stored (customizable storage);
◆ Precise control - using microprocessor control (pulse discharge);
◆ Exquisite shape design - ultra-compact design simplifies installation and optimizes bench space;
◆ Microprocessor control - simple and intuitive operation, refines the setting range of capacitance and resistance.
Model: |
LAWSON-2C |
Pulse form: | Exponential decay |
High voltage output voltage: |
The energy storage voltage can be set freely from 401V to 2500V, and the accuracy is 1V |
Low voltage output voltage: | The energy storage voltage can be freely set from 10V to 400V, and the accuracy is 1V |

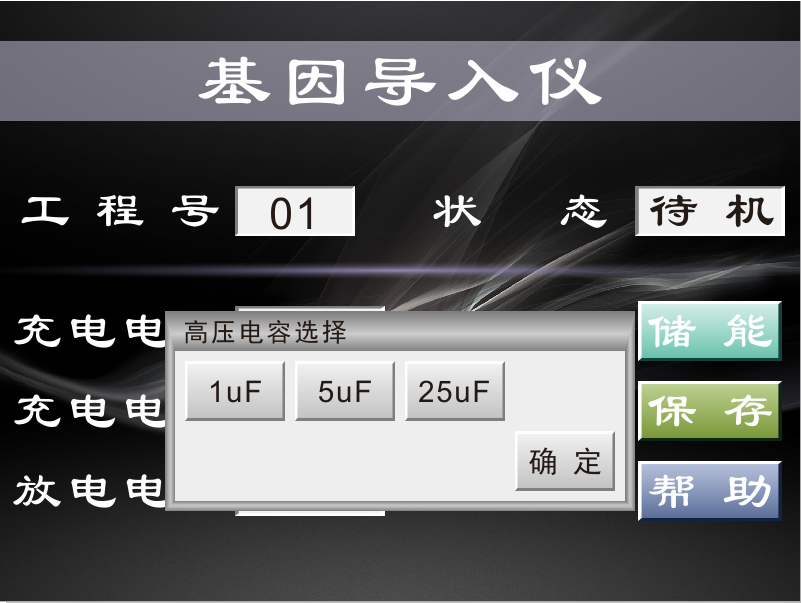

High Voltage Capacitors: | 1μF, 5μF, 25μF and their combination such as 6μF, 26μF, 30μF and 31μF, a total of seven gears, free to set |

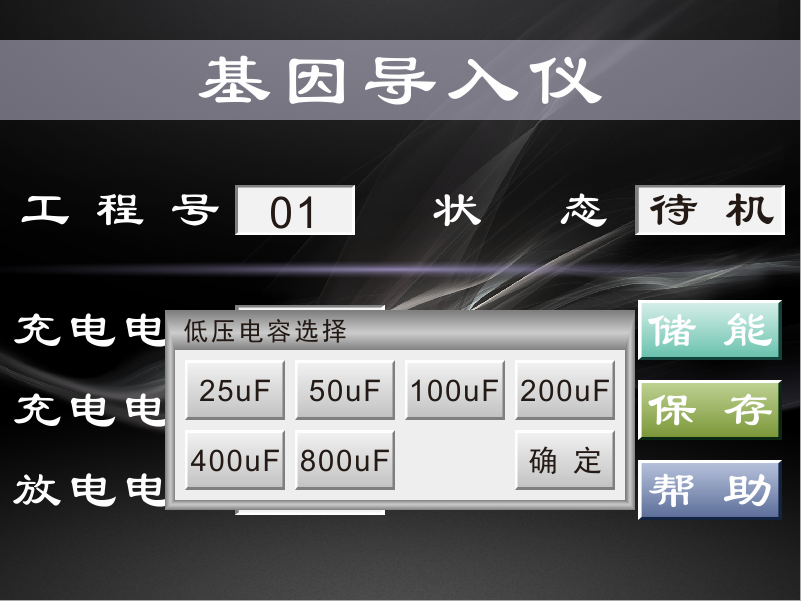

Low voltage energy storage capacitor: | 25μF, 50μF, 100μF, 200μF, 400μF, 800μF and their combinations such as 125μF, 150μF, 175μF, 200μF -- up to 1575μF, a total of 63 levels can be freely set. Minimum 25μF, in steps of 25μF |
Discharge shunt resistor: | 50Ω (fixed), 50Ω, 100Ω, 200Ω, Ω400Ω, 800Ω and ∞ and their combinations such as 50Ω, 100Ω, 150Ω 32 levels up to 1600Ω, freely set. Minimum 50Ω, maximum 1600Ω, in 50Ω steps. There are also infinite files to choose from |
using electric: | Single-phase 220V, 50HZ, 200W |
Time constant: |
With RC time constant, adjustable |
Mainframe net weight: |
12.8kg |
Packing size: |
640*380*350mm |
Gene importer host | 1 set |
Fuse 3A | 2 root |
Certificate (Warranty Card) | 1 part |
user's manual | 1 part |
2mm gene transfer cassette (import) | 1 set |
Power cords and cables | 1 pair |
Transfer DNA into competent bacteria, animal and plant cells, and yeast cells.
Precautions before use:
1. If the instrument has not been used for a long time and is reused, it should be charged and discharged at low voltage first, and the voltage should be gradually increased until the rated value. When the instrument is used, it should be powered on and preheated for 10-15 minutes, set the data, and perform several charging and discharging operations before the import operation can be formally performed.
2. There is high voltage and high current in the output cable and terminal block of the instrument during discharge. Therefore, when using it, avoid contact with and approach to the human body, conductors (such as liquids) or electrical appliances that are easily disturbed.
3. There is high voltage (2500V) in the instrument. Non-professionals should not open it for maintenance. If there is any fault, please contact the relevant technical personnel of our unit.
4. In the experiment, if arc light occurs in the molten pool and the solution bursts out, it means that the voltage setting is too high or the capacitance is too large, and the setting values of the voltage and capacitance should be reduced accordingly.
