Infrared Sterilizer
Infrared Sterilizer an instrument that heats ceramics through a heating wire and uses high-temperature thermal energy to sterilize
- Description
- Specifications
- Paper
- Video

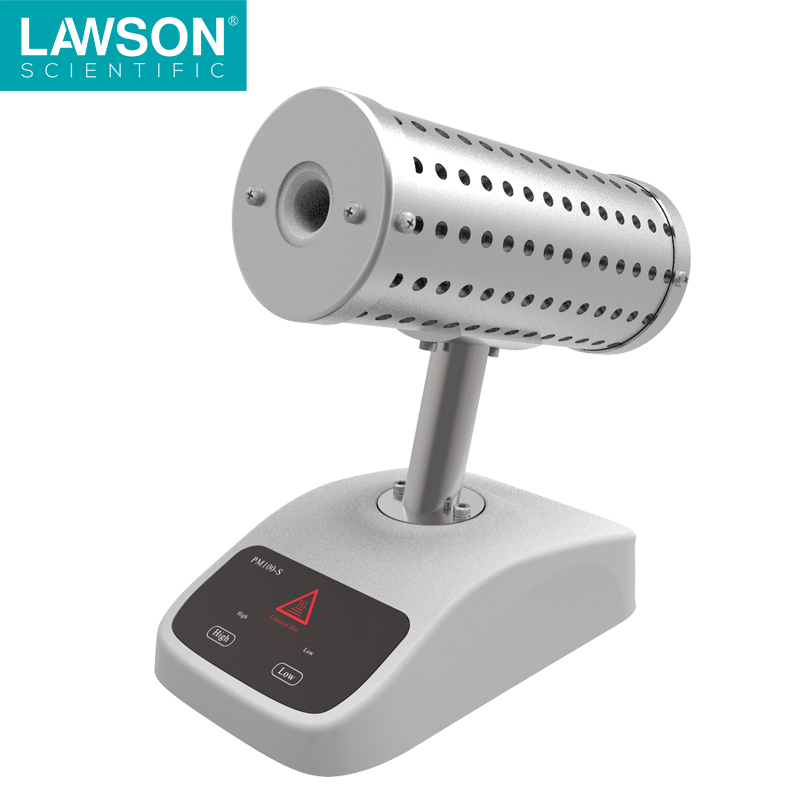

DH-14S Infrared Sterilizer an instrument that heats ceramics through a heating wire and uses high-temperature thermal energy to sterilize it can be widely used in biological safety cabinets, purification workbenches, beside exhaust fans, mobile vehicles because of its convenient use, simple operation, no open flame, no fear of wind, and safe use. Microbiological experiments are carried out in a high-class environment, which can be used as an alternative to alcohol lamps.
Disinfect the inoculation loop, inoculation needle, scissors, tweezers, etc. at one time.
◆Using full touch screen control and rear projection display technology, easy to operate.
◆Completely replace the alcohol lamp, not affected by the safety cabinet/anaerobic room, convenient for disinfection and sterilization of the inoculation loop or needle.
◆The core temperature can reach above 850°C, which can incinerate microorganisms or strains.
◆Short sterilization time, 5-7 seconds to achieve sterilization effect.
◆Use ceramic materials to prevent contagious splashes and cross-contamination.
◆With high temperature and low temperature gears, it is convenient for users to switch flexibly.
◆With high temperature flashing prompt function.
Model | DH-14S |
Product Code | PM100-S |
Maximum temperature in the central zone | 825℃±50℃ |
Maximum Sterilized Outer Diameter | Φ14 |
Total length of heating zone | 150 mm |
Power supply | 200W |
Heating temperature | High and low temperature 400/825℃ |
Heating time | 10~20 min |
Ambient temperature | 0~45℃ |
Applicable humidity | ≤85% |
Dimensions | 185*92*200(H)mm |
Machine weight | 0.86 kg |
Infrared Sterilizer | 1 set |
Detachable power cord | 1 root |
manual | 1 part |
certificate | 1 part |
Warranty Card | 1 part |
It is used for microbial experiments in biological safety cabinets, purification workbenches, beside exhaust fans, mobile vehicles, anaerobic boxes and other environments.
Precautions before use:
1. After opening the package, place the sterilizer on a horizontal workbench or table, away from explosive substances;
2. Ensure that the surface on which the unit is placed can withstand the normal heat generated by the unit, and place the unit away from vertical surfaces;
3. The Infrared Sterilizer comes with a power cord that plugs into the IEC, first, the connector on the back of the unit, then plug it in, into a 220V, 50Kz power supply.
