Sonics ultrasonic processor

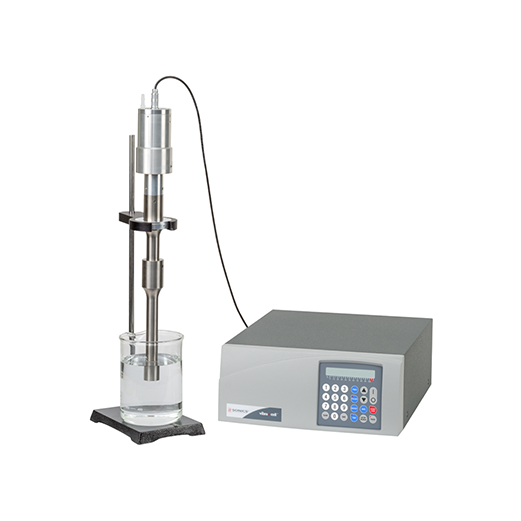

SONICS Industrial Ultra Sonicator VCX 1500 is a reliable and durable choice for many applications. This model includes a 1" diameter, 10" long probe with a 100μm maximum amplitude and a booster.

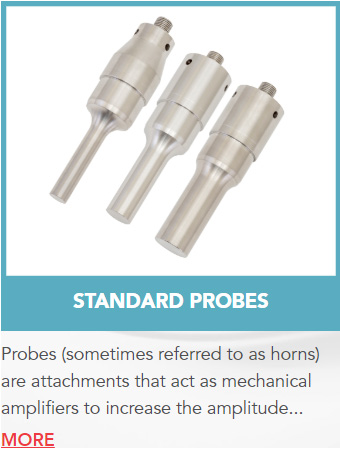

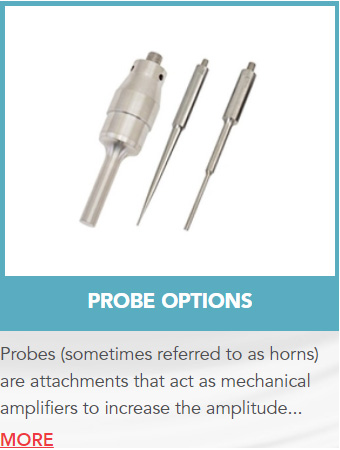

A variety of probe options are available including the flow cell inline processing accessory. Electrical requirements are 220V, 50/60Hz, single phase, 20A.
Part No. VCX 1500A can be used to order the system without the standard probe and booster.
Air cooling of the converter by compressed air is required to prevent overheating of the ultrasonic processor.。
Contact
Online Consult
- Description
- Specifications
- Paper
- Video
SONICS VCX 1500 Industrial Ultrasonic Processor, 1500W Ultrasonic Processor and Equipment for batch installation of organic and inorganic materials up to 20 liters. Typical applications include industrial mixing (including large-scale processing of nanomaterials) and industrial processing (including emulsification, degassing, and large-scale dispersion systems).
◆Programmable
◆Variable power output
◆10 hour timer
◆Pulse mode
◆Wattage and Energy display
◆Temperature monitoring
◆Energy setpoint
| Model | VCX 1500 |
| Frequency | 20KHz |
| Power | 1500W |
| Standard horn | Φ25mm |
| Standard horn throughput | 20L |
| Standard horn length | 230mm |
| Overall size of the horn | 178 x 380 x 463.5 mm |
| Amplifier material | Titanium alloy Ti-6Al-4V |
| Optional horn | Φ25mm |
| Amplifier weight | 1600g |
| Converter cable length | 3m |
| Crushing capacity | 20L |
| Duty Cycle | 1-99% |
| Power Adjustment Range | Continuously adjustable (15-1500w) |
| Gap Time | 0.1-99.9s |
| Temperature protection setting | Yes |
| Power Amplitude Display | Yes |
| Working Mode | Gap/Continuous |
| Power | 220/110V 50Hz/60Hz single phase 15A |
| Net weight | 9.5kg |
| Host + transducer weight | 10.18kg |
| Alternative solid state probe for VCX 1500 | 630-0617 |
| VCX 1500 (H x W x D) 36" x 16" x 16" (914 x 406 x 406 mm) | 630-0474** |
| Support frame | 830-00109 |
| VCX 1500 Converter Clip | 830-00120 |
| Optional temperature probe | 830-00060 |
| instruction manual | *Up to 20 liters when using 1" (25 mm) solid 18 1/2" (470 mm) long probe part number 630-0621 and customer supplied mechanical agitator. **The shock box will hold the VCX 1500 converter, booster and 1" (25 mm) probe part numbers 630-0209, 630-0210 and 630-0310, will not hold the 1" (25 mm) solid 18 1/2 "(470 mm) Long Probe Product Model 630-0621 due to its length. |

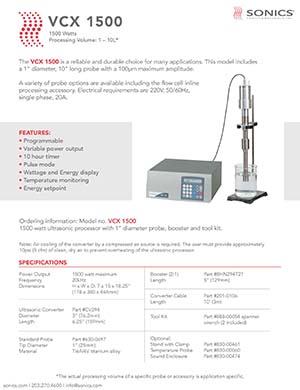

| Design page |  |

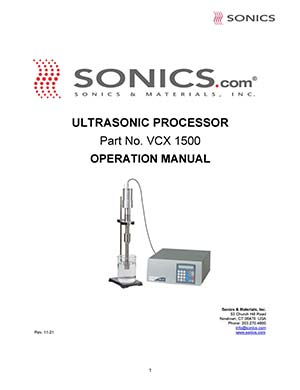

| Manual |  |
