Sonics ultrasonic processor

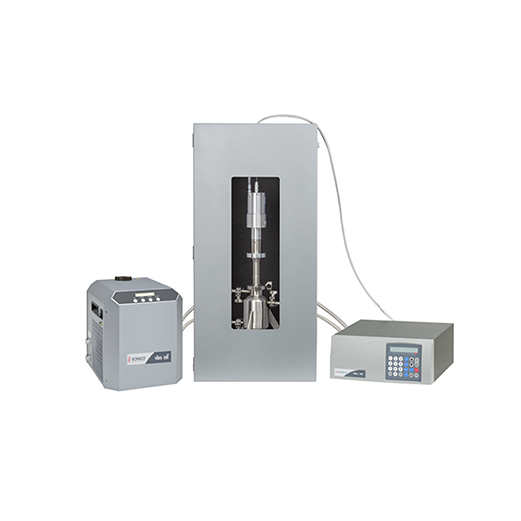

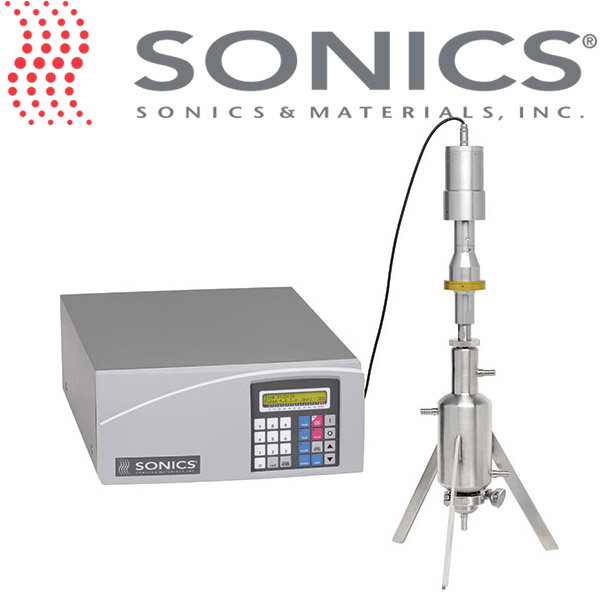

VCX 1500HV Industrial Ultra Sonicator,1500W ultrasonic processor and large capacity continuous flow cell with typical production rate of 100 liters/hour - variables are viscosity and degree of processing required. Mainly used for industrial mixing, including large-scale processing of nanomaterials; industrial processing, including emulsification, degassing and large-scale dispersion. The flow cell is easily disassembled for inspection and cleaning, and is water jacketed to allow samples to be cooled/heated as they are processed.
- Description
- Specifications
- Paper
- Video
VCX 1500HV Industrial Ultra Sonicator,1500W ultrasonic processor and large capacity continuous flow cell with typical production rate of 100 liters/hour - variables are viscosity and degree of processing required. Mainly used for industrial mixing, including large-scale processing of nanomaterials; industrial processing, including emulsification, degassing and large-scale dispersion. The flow cell is easily disassembled for inspection and cleaning, and is water jacketed to allow samples to be cooled/heated as they are processed.
◆Based on flow over 20 liters
◆Programmable
◆Variable power output
◆10 hour timer
◆Pulse mode
◆Wattage and Energy display
◆Temperature monitoring
◆Energy setpoint
Model | VCX 1500HV |
Frequency | 20KHz |
Power | 1500W |
Standard horn | Φ25mm |
Standard horn throughput | 100L per hour |
Standard horn length | 230mm |
Overall size of the horn | 178 x 380 x 463.5 mm |
Amplifier material | Titanium alloy Ti-6Al-4V |
Optional horn | Φ25mm |
Amplifier weight | 1600g |
Converter cable length | 3m |
Crushing capacity | 100L per hour |
Duty Cycle | 1-99% |
Power Adjustment Range | Continuously adjustable (15-1500w) |
Gap Time | 0.1-99.9s |
Temperature protection setting | Yes |
Indoor liquid volume | 500ml |
Operating pressure | Up to 50ps |
Power | 220/110V 50Hz/60Hz single phase 15A |
Net weight | 9.5kg |
Host + transducer weight | 10.68kg |
