Thermostat(Heating&Cooling)

thermostatic bath is widely used in chemical industry, petroleum, medicine, biology, physical chemistry, measurement control, electronic instrument processing and other fields, and is popularized as a basic experimental instrument in universities, research institutes, enterprises and institutions.

Key Features:

Digital display resolution: 0.01℃

Temperature fluctuation value: ±0.05℃

Temperature uniformity: ±0.05°C horizontal/vertical

The temperature range can be controlled: room temperature ~ 300 ℃ (medium according to the temperature range: pure water, methyl silicone oil, etc.)

Technical Features:

● Dual use of water and oil: you can choose the temperature range from room temperature to 100℃, room temperature to 200℃, room temperature to 300℃;

● External circulation function: The centrifugal jet circulation pump can lead the constant temperature liquid in the tank to the outside, establish a second constant temperature field, and control the external experimental container of the machine.

● Capacity range: 5L, 10L, 15L, 20L, 30L, 50L, 100L, and non-standard products can also be designed and produced in full accordance with user requirements.

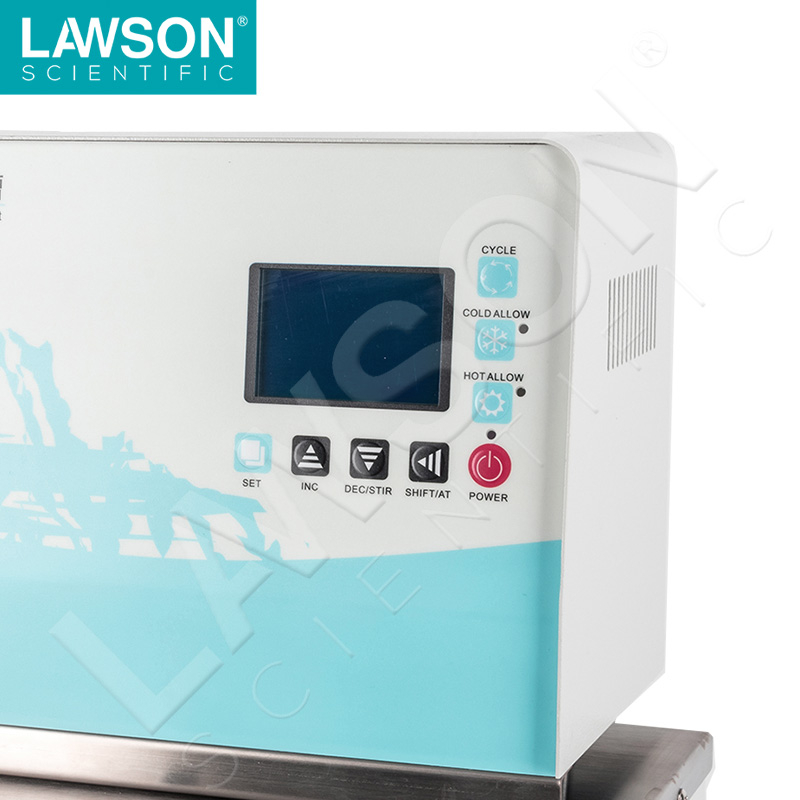

● Temperature control function: Built-in integrated latest generation PID automatic temperature control program, built-in highest precision PT100 temperature sensor AAA grade. Equipped with a large-screen high-brightness LCD screen, Chinese and English display, digital display resolution: 0.01 ℃, to ensure accurate and stable temperature control.

●Internal circulation function: The heatless centrifugal circulation pump is used to avoid the traditional water pump from affecting the tank temperature field due to its own heat generation. The inner circulation system is designed according to the principle of porous U-shaped reflux circulation, which realizes the turbulent flow and high uniformity of the flow field and temperature field in the tank.

● The shell of the fuselage adopts mirror surface anti-aging electrostatic painting technology, and the inner tank and table are made of high-quality S304 brushed panel stainless steel.

●Precise workmanship of the front panel and countertop of the chassis, coupled with the unique humanized R rounded corner design structure, can prevent operators from being inadvertently injured by edges and corners.

● The water discharge system can meet the needs of all kinds of laboratories and enterprises to change the production liquid.

Safety Device:

1. With power-off protection function

2. With upper and lower temperature alarm setting function

3. Low water level protection and alarm function

4. Temperature runaway protection and alarm function

5. The heating tube has low water level anti-dry burning and explosion-proof functions

Guide to optional features

1. Optional extended external PT100 temperature sensor, which can detect and control the temperature of the external system in real time during external circulation.

2. Optional built-in 1~30 temperature control programs, which can perform automatic program temperature control, and display the set temperature-time program running status in real time.

3. Optional RS232 or RS485 communication interface, easy to connect to the host computer ModbusRTU communication protocol.

4. Optionally design and install a magnetic stirring system, which can directly perform magnetic stirring on the sample placed in the beaker in the working chamber of the constant temperature tank, without the need for an external vertical stirrer, reducing the tedious operation, and at the same time, it can realize closed processing and reduce the waste generated during the stirring process. fog loss.

5. The built-in cooling coil in the tank is optional to quickly cool down and control the exothermic reaction of the system.

6. Optional height-adjustable immersion loading platform can easily adjust the liquid level of the immersed sample.

Friendly reminder from manufacturers - the following points should be considered in the selection of thermostatic baths:

1. First consider what is the usage range of the required temperature? What medium is used as the carrier of the temperature field, the medium used is different in different temperature ranges, and the medium is generally selected according to the temperature range: ethylene glycol to water (low temperature), alcohol (ultra low temperature), pure water (5~95℃), imported dimethyl Base silicone oil (for high and low temperature), etc.

2. According to your actual situation, choose a constant temperature tank with a large capacity. The correct calculation method of the effective working volume is: the opening size of the working tank plus the depth of the tank, the unit is mm.

3. The requirements for the temperature uniformity of the temperature field of the constant temperature tank are divided into two categories: 1. Ordinary type: ±0.1℃. 2. High precision type: ±0.01℃.

4. Whether the external circulation function is required according to the usage, and what is the maximum lift of the external circulation.

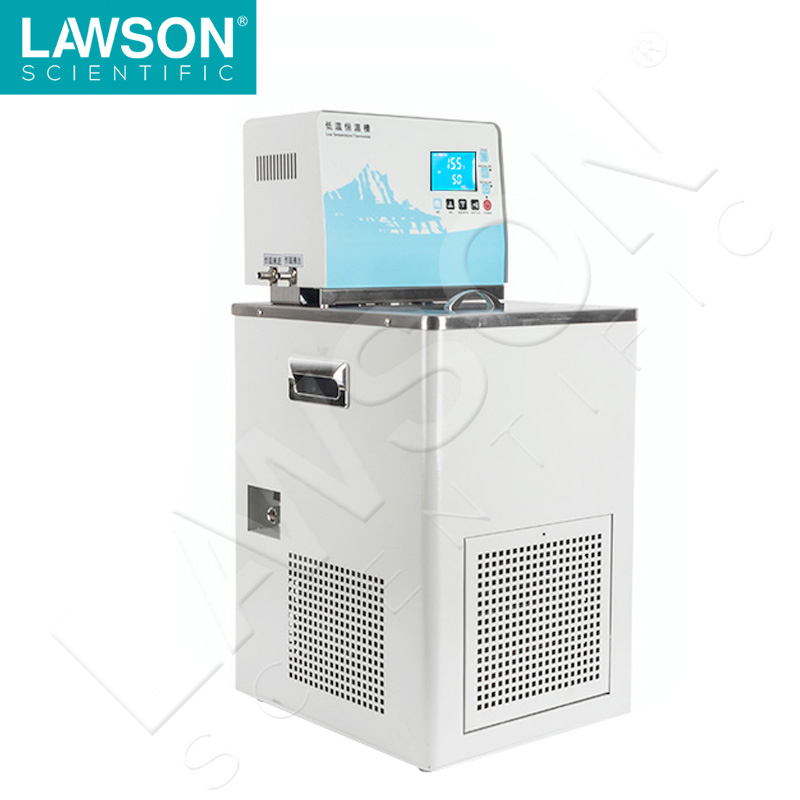

DC-0506 thermostatic bath adopt international advanced refrigeration system, stable and reliable performance. The low-temperature experimental instrument developed for scientific research, biology, medicine, chemical industry and other departments has high requirements on constant temperature accuracy. It has the characteristics of making the temperature in the tank more uniform and intelligent temperature control more accurate. It has an over-temperature alarm system to ensure the safety of the instrument, and the power-off protection function can automatically delay three minutes. marked use.
