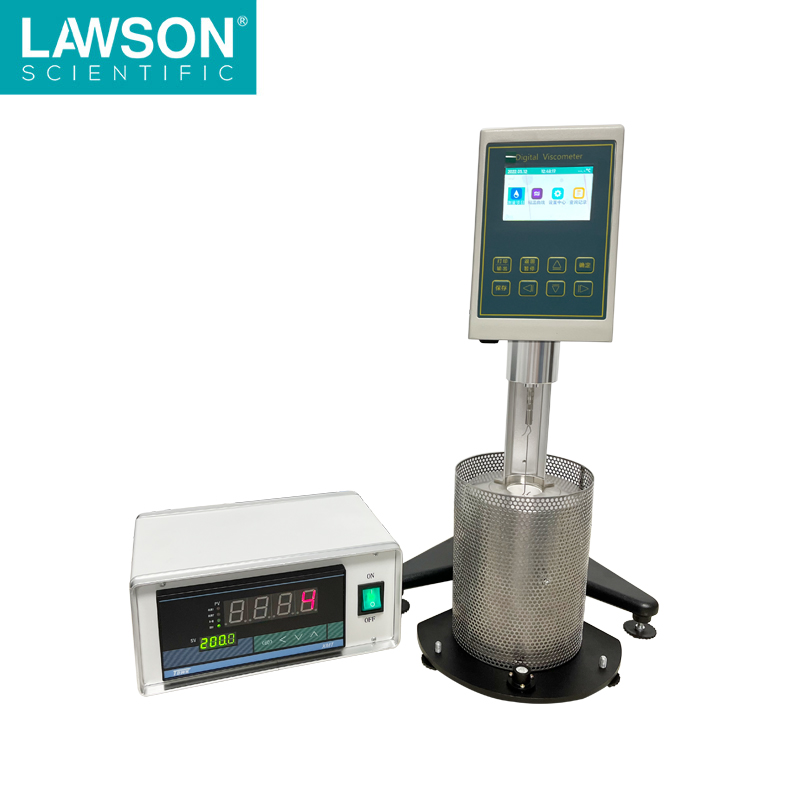

Digital Display Viscometer
RVT-40M-F300 megathermal Viscometer is an upgraded product of the company's digital viscometer.
Using more advanced mechanical design technology, manufacturing process and microcomputer control technology, the data collection is correct, and the display adopts high-resolution TFT display screen, the data display is clear, and the functions are more comprehensive.
This instrument has the characteristics of high measurement sensitivity, reliable test results, convenient operation, beautiful appearance, etc. It is a precision instrument used to measure the absolute viscosity of Newtonian liquids and the apparent relative viscosity of non-Newtonian liquids. Melt glue, asphalt, paraffin, high polymer, and other products.
- Description
- Specifications
- Paper
- Video
RVT-40M-F300 megathermal Viscometer is an upgraded product of the company's digital viscometer.
Using more advanced mechanical design technology, manufacturing process and microcomputer control technology, the data collection is correct, and the display adopts high-resolution TFT display screen, the data display is clear, and the functions are more comprehensive.
Torque Description:
RVT series: can be widely used in hot melt adhesive, asphalt, paraffin, high polymer, etc.
This instrument has the characteristics of high measurement sensitivity, reliable test results, convenient operation, beautiful appearance, etc. It is a precision instrument used to measure the absolute viscosity of Newtonian liquids and the apparent relative viscosity of non-Newtonian liquids. Melt glue, asphalt, paraffin, high polymer, and other products.
This instrument is a high-temperature digital viscometer. The motor drives the rotor to rotate at a constant speed through variable speed. When the rotor rotates in the liquid, the liquid will generate a viscosity torque acting on the rotor. The greater the viscosity of the liquid, the greater the viscosity torque. On the contrary, the smaller the viscosity of the liquid, the smaller the viscous moment. The viscous moment acting on the rotor is detected by the sensor, and the viscosity of the measured liquid is obtained after computer processing.
Equipped with 4 rotors (R21, R27, R28, R29) and two shifting modes, which are stepless shifting and step shifting. The step-by-step speed change has 10 speed speeds (0.5, 1, 2, 2.5, 4, 5, 10, 20, 50, 100 rpm), and 40 combinations of these can be used to measure various liquids within the measurement range. Viscosity value. At the same time, it is equipped with a temperature measuring device, and the temperature is directly displayed on the display screen, and the viscosity change value caused by the change of temperature can be observed.
Model | RVT-40M-F300 |
Measuring range | 100-40 million cp |
Temperature display | Yes |
Viscosity temperature curve | Can output viscosity temperature time curve |
Rotor Specifications | Rotors R21-R29 |
Rotor speed | 0.1-200 rpm CVT |
Automatic file | Can automatically select the appropriate rotor number and speed |
Shear Force Display | Yes |
Shear Rate Display | Yes (Small Adapters and No. 0 Rotors Only) |
Communication/Printing | Computer interface for use with LAWSONSQ software and printer output connection |
Language selection | Chinese/English |
Timing measurement function can be set directly | The time to reach the specified torque and the stop time can be set (it can also be measured directly according to the last saved parameter settings) |
Measurement accuracy | ±1%(Newtonian liquid) |
Reproducibility | ±0.2% of full scale |
Display information | Viscosity (cP or mPa s) |
Temperature (°C) (standard with temperature probe) | |
Speed (RPM) | |
time | |
Rotor used | |
Power supply | AC 220V±10% 50Hz±10% |
Working environment | Temperature 5℃~45℃, relative humidity not more than 80% |
Dimensions | 370×325×280mm |
Net weight | 9.2㎏ |
host | 1 set |
Rotors R21-R29 | 1 set |

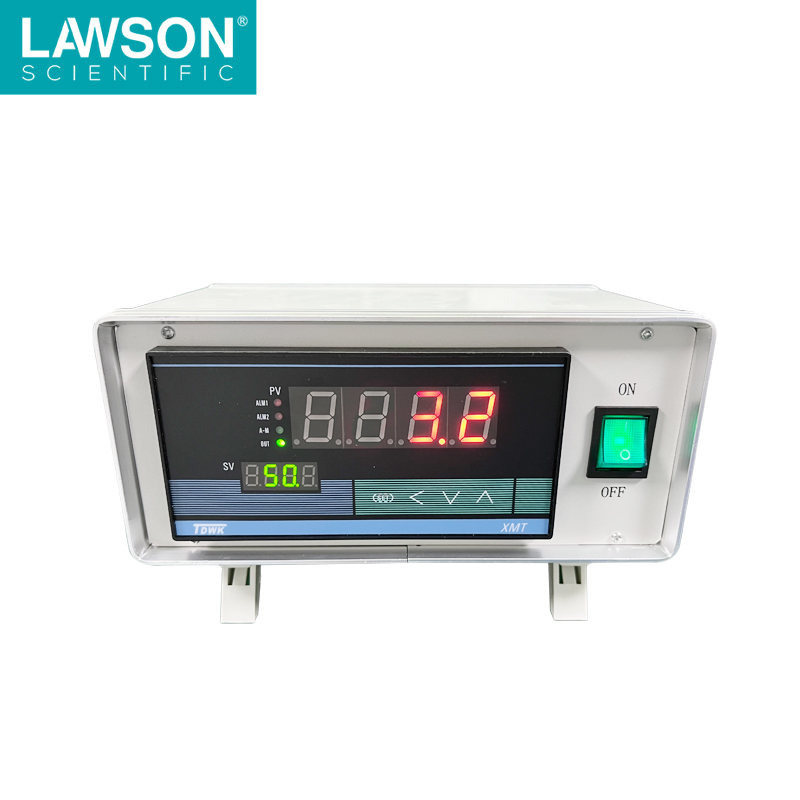

temperature control device | 1 set |

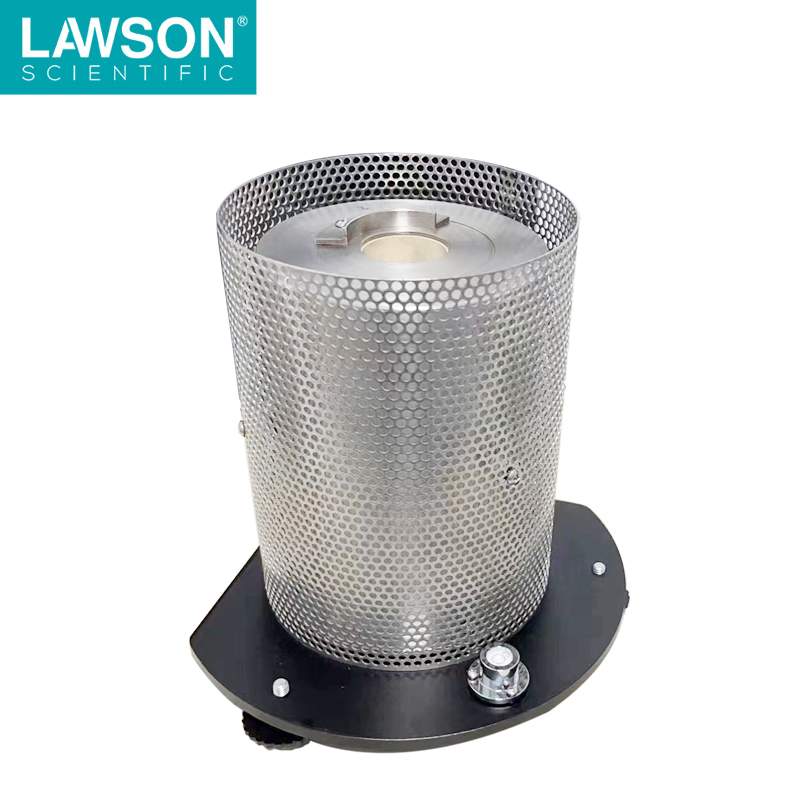

High temperature heating furnace | 1 set |
Power Adapter | 1 set |
Protective frame | 1 single |
base | 1 single |
升降立柱 | 一套 |
user's manual | 1 part |
certificate | 1 part |
Warranty | 1 part |
Hexagon head | 1 single |
dumb wrench | 2 single(Note: 1 for each size) |
temperature probe | 1 single |
