TissueRuptor
Laboratory homogenisers DH-F500 Tissue Tearor is suitable for mixing, emulsification and homogenization of liquids, dispersion of solid powders in liquids, and mashing and homogenization of animal tissues. This machine produces strong hydraulic shearing effect through high-speed shearing and dispersion, so that the material is sucked from the lower end of the rotor and sprayed through the stator. It has the characteristics of high rotation speed, low noise, electronic stepless speed regulation, and constant speed indicating and displaying rotation speed. It rubs and collides with each other, and makes repeated and irregular operation to achieve the effect of dispersion, mixing and refinement, and the maximum processing capacity can reach 10L.
- Description
- Specifications
- Paper
- Video
Laboratory homogenisers DH-F500 Tissue Tearor is suitable for mixing, emulsification and homogenization of liquids, dispersion of solid powders in liquids, and mashing and homogenization of animal tissues. This machine produces strong hydraulic shearing effect through high-speed shearing and dispersion, so that the material is sucked from the lower end of the rotor and sprayed through the stator. It has the characteristics of high rotation speed, low noise, electronic stepless speed regulation, and constant speed indicating and displaying rotation speed. It rubs and collides with each other, and makes repeated and irregular operation to achieve the effect of dispersion, mixing and refinement, and the maximum processing capacity can reach 10L.
main feature:
● The drive motor adopts series-excited micro-motor with high output power and compact structure, and the design is safe and reliable.
● All parts of the working head contacting the material are made of stainless steel, which has good corrosion resistance.
● The working head is connected with the drive motor by a coupling, which is easy and flexible to disassemble and assemble.
● The speed regulating machine base adopts stepless speed regulator, which is convenient for speed regulation and stable in operation.

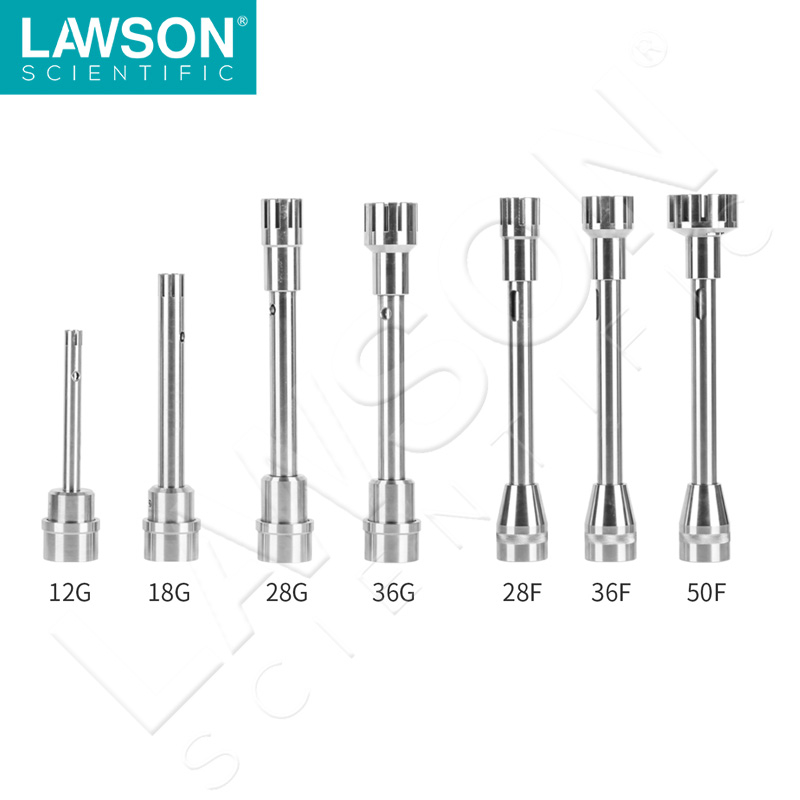

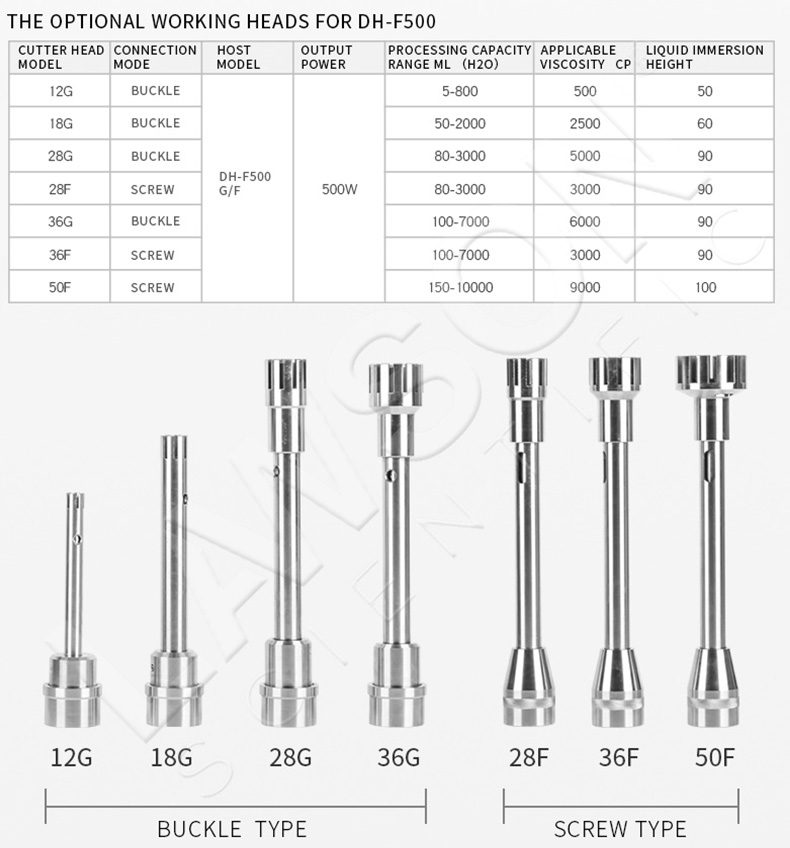

● Snap-in and threaded heads are available for a wide range of applications.
Model | DH-F500 |
Voltage | 220V/50Hz |
throughput | 5ml~10L (different working heads need to be selected) |
Rotating speed | 2000-28000rpm |
Speed display | LCD digital display |
Speed control | CVT |
timing control | 6000min |
Torque display | Have |
contact material | SS3 |
Bushing material | Teflon |
Standard work head type | cutting teeth |
maximum operating temperature | 120℃ |
Number of standard working heads | 1 |
allowable ambient temperature | 5~40℃ |
allowable relative humidity | 80% |
Process type | batch processing |
Accessories | Work stand, base |
Total Weight | about 9kg |
host | 1 set |
Accessories | Work frame, base, work head (optional) |
user's manual | 1 part |
Warranty Card | 1 part |
certificate | 1 part |
