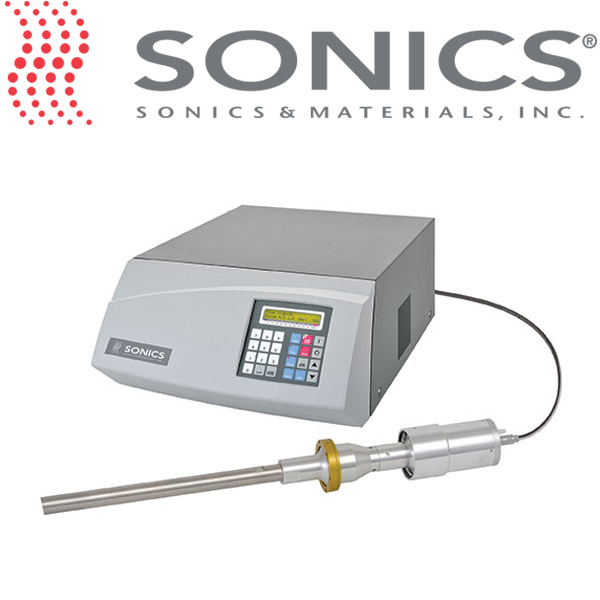

Sonics ultrasonic processor
SONICS ultrasonic Homogenization VCX 2500:Air-cooled converter, capable of batch processing up to 50 liters* Typical applications include industrial mixing (including large-scale processing of nanomaterials) and industrial processing (including emulsification, degassing and large-scale dispersion systems).
- Description
- Specifications
- Paper
- Video
SONICS ultrasonic Homogenization VCX 2500:Air-cooled converter, capable of batch processing up to 50 liters* Typical applications include industrial mixing (including large-scale processing of nanomaterials) and industrial processing (including emulsification, degassing and large-scale dispersion systems).
◆batches up to 50 liters

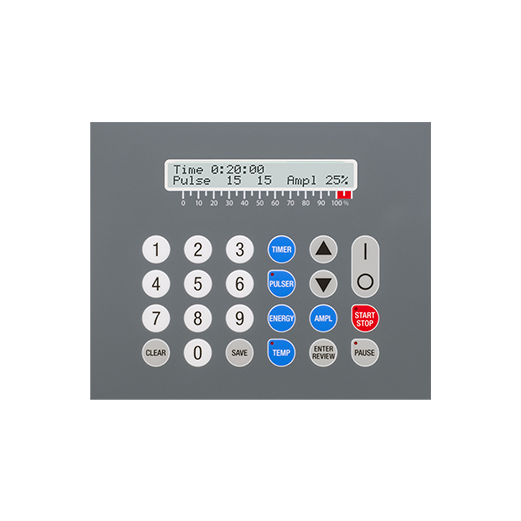

◆Programmable
◆Variable power output
◆10 hour timer
◆Pulse mode
◆Wattage and Energy display
◆Temperature monitoring
◆Energy setpoint
Model | VCX 2500 |
Frequency | 20KHz |
Power | 2500W |
Standard horn | Φ38mm |
Standard horn throughput | More than 50L each time |
Standard horn length | 370mm |
Overall size of the horn | 240 x 445 x 711 mm |
Amplifier material | Titanium alloy Ti-6Al-4V |
Optional horn | Φ25mm,Φ38mm |
Amplifier weight | 816g |
Converter cable length | 3m |
Crushing capacity | More than 50L each time |
Duty Cycle | 1-99% |
Power Adjustment Range | Continuously adjustable (15-2500w) |
Gap Time | 0.1-99.9s |
Temperature protection setting | Yes |
Working Mode | Gap/Continuous |
Power | 220/110V 50Hz/60Hz single phase 30A |
Host + transducer weight | 21.8kg |
