Multi Reax
High throughput is one of the daily challenges that analytical laboratories have to deal with. In order to simplify these processes, we have developed Multi Reax Vortexer DMR-300, which is widely used in biological experiments, medical and health, material industry, food and chemical industry, etc. (to list: cyclamate, blood).
- Description
- Specifications
- Paper
- Video

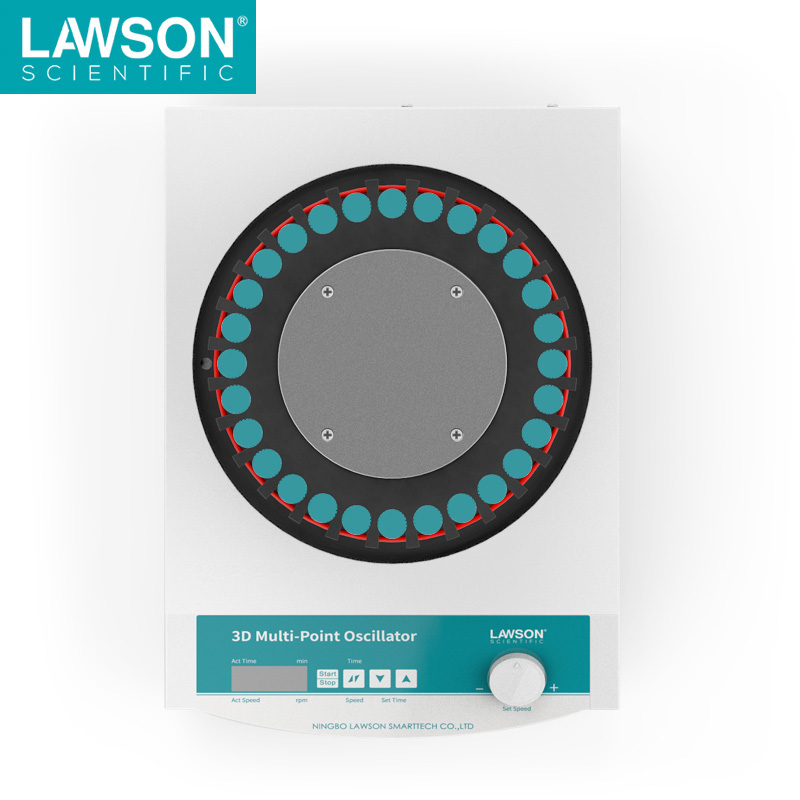

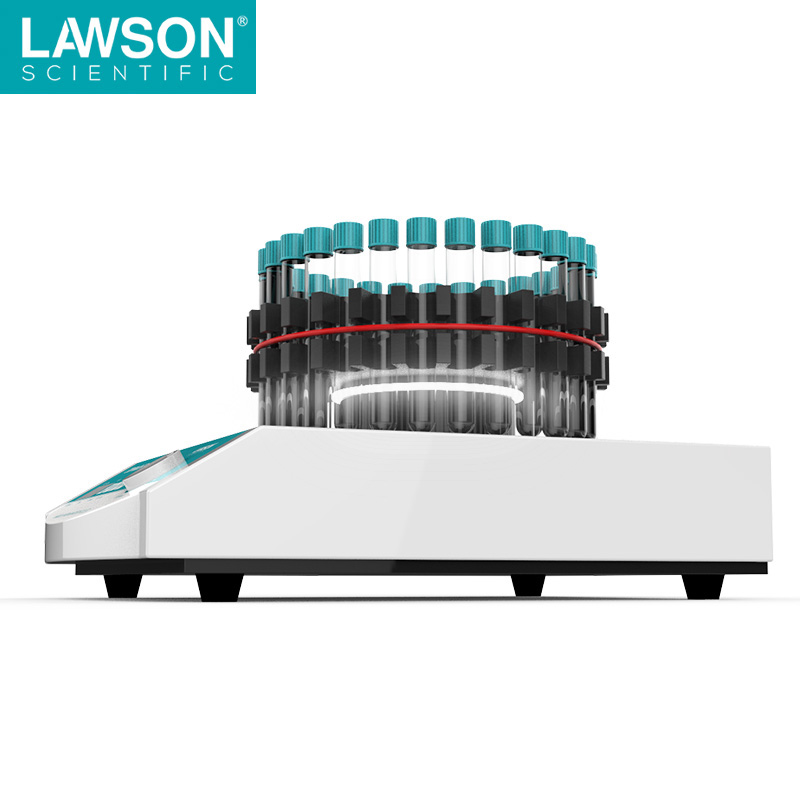

High throughput is one of the daily challenges that analytical laboratories have to deal with. In order to simplify these processes, we have developed Multi Reax Vortexer DMR-300, which is widely used in biological experiments, medical and health, material industry, food and chemical industry, etc. (to list: cyclamate, blood).
Application range
1. Food: additive content, organic high-risk substances
2. Drug analysis: traditional Chinese medicine pesticide residues, biochemical analysis of western medicine
3. Agricultural and sideline product testing: QuEchERS, agricultural product residues, animal food residues
4. Environmental testing: water quality, soil
features
·It can accommodate 16 tubes with a diameter of 16-32mm or 28 tubes with a diameter of 9-18mm. , high borosilicate tubes, etc. (tubes with buckle caps or screw caps).
·The amplitude of 3mm guarantees excellent mixing and vortex effect for large-volume, difficult-to-dissolve samples.
·Speed speed digital display, and continuously adjustable, the adjustable range is 300-3000rpm.
· Integrated timer digital display (up to 99 hours 59 minutes - ie 5999 minutes) enables automatic termination of the vibration function, allowing unattended operation. When the task is completed, a beep will sound. This allows other things to be taken care of while the sample is being prepared.
·Bundled with round cable ties, it is more convenient to insert samples, with a built-in 24V LED light strip, the effect of sample mixing and vortex is intuitively displayed
·Maximum load 1.8kg
·Protection grade IP30
Model | DMR-300 |
Regulation mode | Key+knob combination |
Display method | digital display |
amplitude | 3mm |
Disk size | R50: inner Φ14.2cm outer Φ27.2cm R15: inner Φ14.2cm outer Φ25.2cm |
Adapter Specifications | Can accommodate 16 tubes with a diameter of 16-32mm (30-50ml) Can accommodate 28 tubes with a diameter of 9-18mm (10-25ml) |
Standard accessories | 2 test tube holders |
range of rotation | 300~3000rpm |
Output Power | 150W |
motor type | DC Motor (Brushless) |
angle | three dimensional |
Movement | Automatic reset |
Degree of protection DIN EN 60529 | IP 30 |
Timing function | 1~99 hours 59 minutes |
maximum load | 1.8kg |
operating mode | timed or continuous |
speed setting | Number (knob) |
Permissible environmental conditions | At 5-35 °C, the relative humidity is up to 80% When 36-40 °C, the relative humidity decreases linearly, up to 50% |
Dimensions (w/d/h) | 310x450x200mm |
weight | 17.05 kg |
constant voltage | 110-220V 50/60Hz |

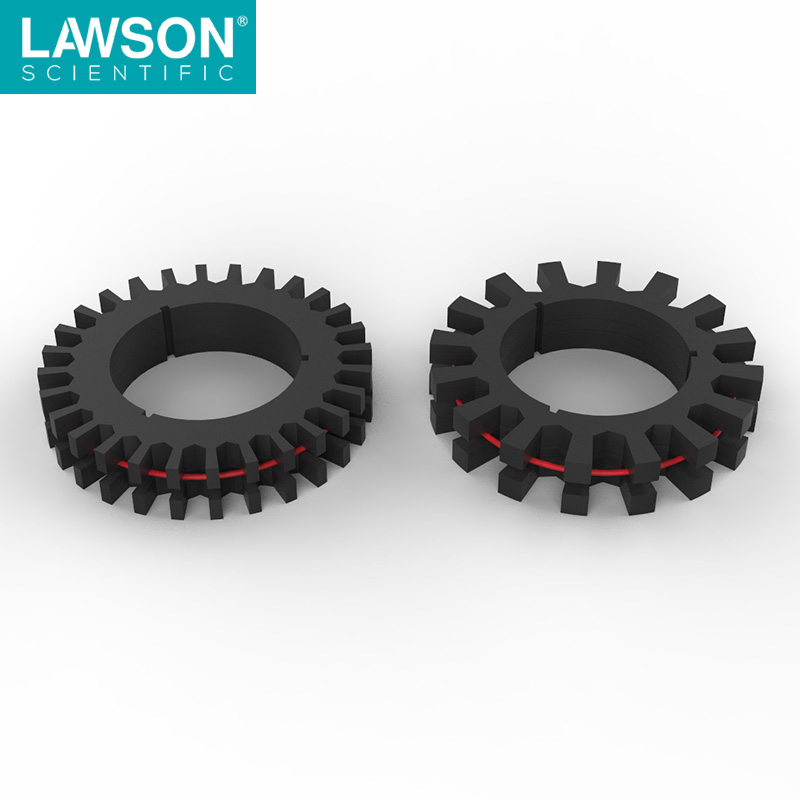

Optional special adapter bracket model: | ||
Model | Specifications | Applicable test tube diameter |
R50 | 16* (30~50ml) | Φ16~32mm |
R15 | 28* (5~25ml) | Φ9~18mm |
host | 1 set |
Dedicated Adapter Bracket | 2 set |
power cable | 1 root |
user's manual | 1 part |
certificate | 1 part |
Warranty Card | 1 part |
