Sonics ultrasonic processor
SONICS Probe Sonicator VCX130: Ultrasonic Liquid Processor for Small Batch Applications, 130 Watt Ultrasonic Processor with Timer and Pulser to safely process a wide range of organic and inorganic materials, from 150 microliters to 150 milliliters. Typical applications include biotechnology and pharmaceutical processing, including mixing, dispersion and sample preparation for use.
Contact
Online Consult
- Description
- Specifications
- Paper
- Video

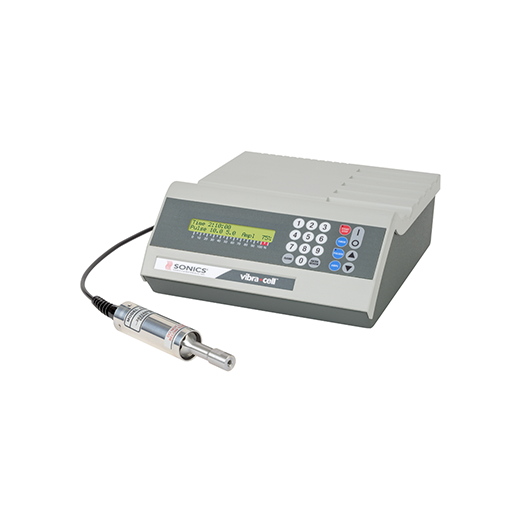

SONICS Probe Sonicator VCX130: Ultrasonic Liquid Processor for Small Batch Applications, 130 Watt Ultrasonic Processor with Timer and Pulser to safely process a wide range of organic and inorganic materials, from 150 microliters to 150 milliliters. Typical applications include biotechnology and pharmaceutical processing, including mixing, dispersion and sample preparation for use.

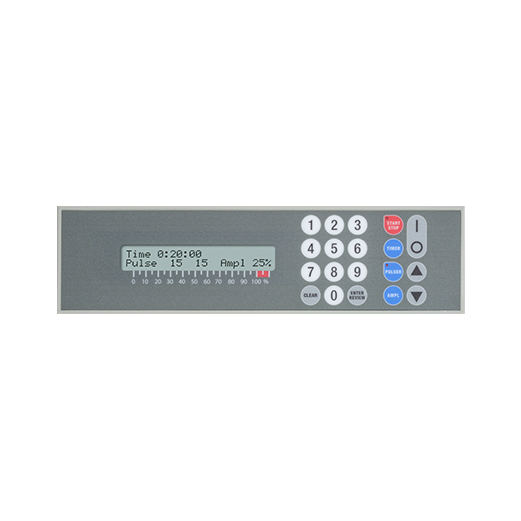

◆Energy monitor
◆Digital wattmeter
◆Automatic tuning
◆Automatic amplitude compensation
◆Microprocessor based – programmable
◆Ten hour timer
◆1-59 second independent ON/OFF pulser
◆Elapsed time indicator
◆Variable power output control
| Model | VCX 130 |
| Frequency | 20KHz |
| Power | 130W |
| Timing device | 1s-10hr |
| Pulse excitation device | Off: Hand touch On: Adjustable from 1-59 seconds |
| Inverter model | CV18 |
| Standard horn | Φ6mm |
| Standard horn length | 113mm |
| Overall size of the horn | 115 x 250 x 320 mm |
| Amplifier material | Titanium alloy Ti-6Al-4V |
| Standard horn handling capability | 10ml to 50ml |
| Optional horn | Φ2mm,Φ6mm |
| Amplifier weight | 340g |
| Loom cable length | 1.5m |
| Duty Cycle | 1-99% |
| Power Adjustment Range | Continuously adjustable (20-130w) |
| Temperature protection setting | / |
| Power Amplitude Display | Yes |
| Operating frequency range | Energy Monitor Digital Wattmeter Auto Tuning Auto Amplitude Compensation |
| Working Mode | Gap/Continuous |
| Power | 220/110V 50Hz/60Hz or unless otherwise required, electricity is required to be sent at 117V, 50/60Hz |
| Net weight | 3.2kg |
| Host + transducer weight | 3340g |
| ultrasonic generator | 1 set |
| soundproof box | choose |
| power cable | 1 root |
| toolbox | 1 set |
| Dedicated crushing cup | choose |
| user's manual | 1 part |
| Design page |  |

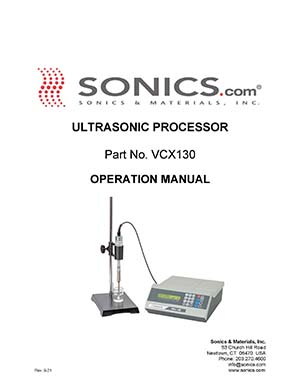

| Manual |  |

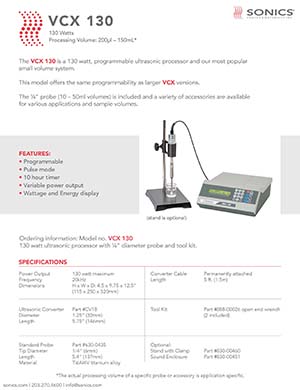

| sonics_vibracell_catalog |  |
