Sonics ultrasonic processor

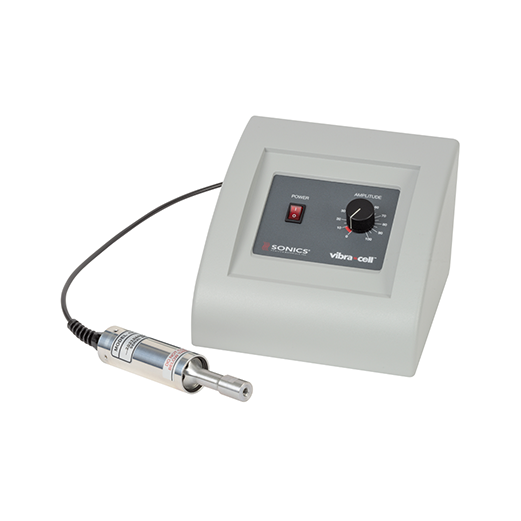

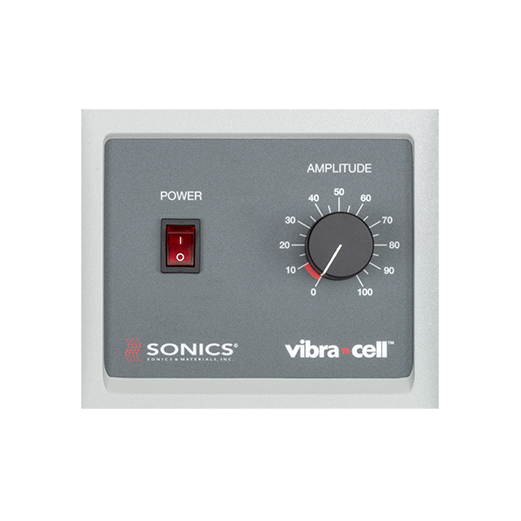

SONICS Cell Extraction VCX 50:is a small and compact 50 watt ultrasonic processor. The probe can be held by hand and ultrasonic energy is activated by turning the amplitude knob on the front panel.
The 1/8” probe (0.5 – 15mL volumes) is included and a variety of accessories are available for various applications and sample volumes.
- Description
- Specifications
- Paper
- Video
SONICS Cell Extraction VCX 50:is a small and compact 50 watt ultrasonic processor. The probe can be held by hand and ultrasonic energy is activated by turning the amplitude knob on the front panel.
The 1/8” probe (0.5 – 15mL volumes) is included and a variety of accessories are available for various applications and sample volumes.
◆Compact design
◆Variable power output
◆Low cost
Model | VC 50 |
Frequency | 20KHz |
Power Output | 50W |
Ultrasonic Converter | Part #CV18 |
Tip Diameter | Φ3mm |
Diameter Length | 32mm/146mm |
Length | 138mm |
Material | Ti6Al4V titanium alloy |
Standard horn throughput | 0.5 – 15mL volumes |
Optional horn | Φ2mm |
Converter Cable | 1.5m |
Power adjustment range | 10% adjustment per gear(5-50w) |
Operating frequency range | Energy Monitor Digital Wattmeter Auto Tuning Auto Amplitude Compensation |
Working Mode | Continuous |
Power | 220/110V 50Hz/60Hz or unless otherwise required, electricity is required to be sent at 117V, 50/60Hz |
Dimensions | H x W x D: 8 x 8 x 5”(203 x 203 x 127mm) |
sonics Cell Extraction | 1 set |
soundproof box | choose |
power cable | 1 root |
toolbox | 1 set |
Dedicated crushing cup | choose |
user's manual | 1 part |
Design page | |

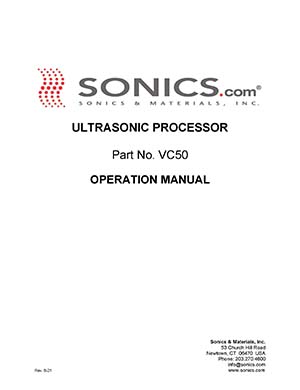

Manual | |

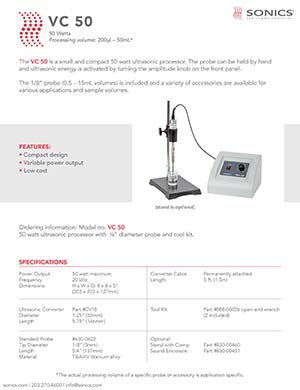

sonics_vibracell_catalog |
