Sonics ultrasonic processor
SONICS ultrasonic liquid processor VC505, can safely handle a variety of organic and inorganic materials, from 250 microliters to 1 liter*. Typical applications include nanotechnology (production of nanoparticulate materials and graphene dispersions), cell lysis, sample preparation, homogenization, ChIP assays, emulsification, depolymerization and depolymerization, and applications in the field of sonochemical liquid handling.
Contact
Online Consult
- Description
- Specifications
- Paper
- Video

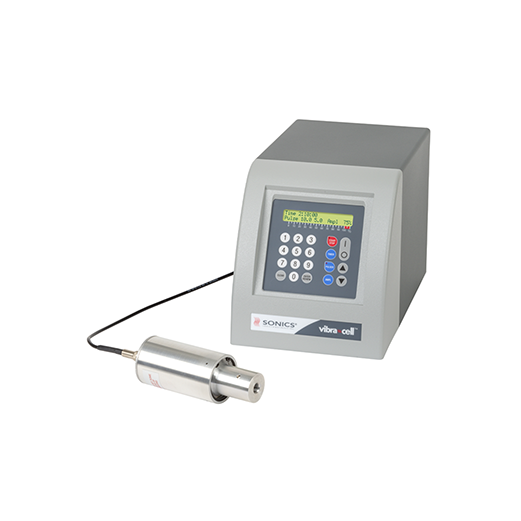

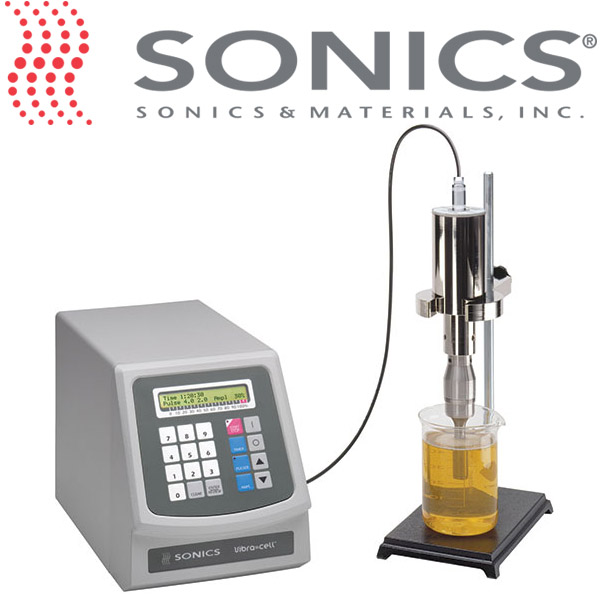

SONICS ultrasonic liquid processor VC505, can safely handle a variety of organic and inorganic materials, from 250 microliters to 1 liter*. Typical applications include nanotechnology (production of nanoparticulate materials and graphene dispersions), cell lysis, sample preparation, homogenization, ChIP assays, emulsification, depolymerization and depolymerization, and applications in the field of sonochemical liquid handling.

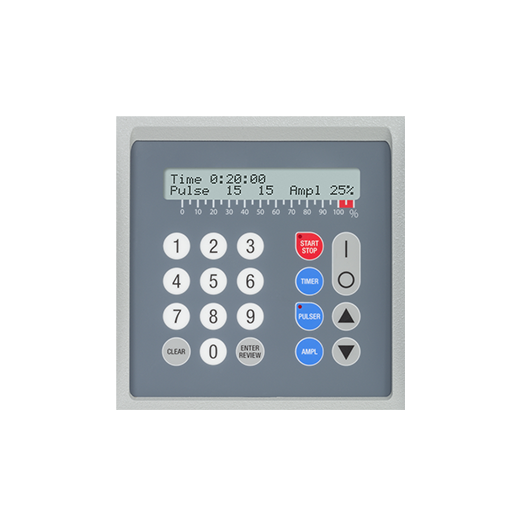

• Programmable
• Variable power output
• 10 hour timer
• Pulse mode
• Wattage and Energy display
| Model | VC 505 |
| Frequency | 20KHz |
| Power | 500W |
| Sealed Inverter Model | CV334 (lead zirconate titanate crystal piezoelectric inverter) |
| Standard horn | Φ13mm |
| Standard horn length | 113mm |
| Overall size of the horn | 235 x 190 x 340 mm |
| Amplifier material | Titanium alloy Ti-6Al-4V |
| Standard horn handling capability | 50ml to 250ml |
| Optional horn | Φ6mm,Φ10mm |
| Amplifier weight | 900g |
| Loom cable length | 1.8m |
| Crushing capacity | 50ml to 250ml |
| Duty Cycle | 1-99% |
| Power Adjustment Range | Continuously adjustable (20-500w) |
| Gap Time | 0.1-99.9s |
| Temperature protection setting | none |
| Power Amplitude Display | Yes |
| Operating frequency range | Energy Monitor Digital Wattmeter Auto Tuning Auto Amplitude Compensation |
| Working hours | Microprocessor based - programmable 10 hour timer 1 - 59 seconds independent on/off pulse |
| Ultrasound time | From 1 second to 10 hours |
| Working Mode | Gap/Continuous |
| Power | 220/110V 50Hz/60Hz or unless otherwise required, electricity is required to be sent at 117V, 50/60Hz |
| Net weight | 6.8kg |
| Host + transducer weight | 9.6g |
| ultrasonic liquid processor | 1 set |
| Sound-enclosures | choose |
| toolbox | No. 88-00041 Converter and a red wrench |
| toolbox | No. 88-00026 and a blue wrench |
| power cable | 1 root |
| Rosette Glass Cooling Cells | choose |
| manual | 1 part |
| instruction manual | Unless otherwise requested, shipped complete and ready to use 1/2" (13 mm) probe with replaceable tip, ** kit and instruction manual.** When handling samples containing organic solvents or low surface tension liquids, please Do not use probes with replaceable tips. Use solid probe part number 630-0219. Probes provided will have replaceable tips unless otherwise requested. |
| cautious | All detectors, including those with replaceable tips, resonate at 20kHz. If the replaceable tip is removed or removed from the rest of the detector, this element will no longer resonate at 20 kHz, and the power supply will enter an overload condition, shut down or fail. organic solvents (eg. and low surface tension liquids) penetrate the interface between the probe and the replaceable tip, thereby bringing particles into the threaded portion and separating the tip from the probe. When processing contains organic solvents or low surface tension When sampling liquids, always use the solid-state detector or as a backup full-wave 10 (254 mm) detector or expander. |

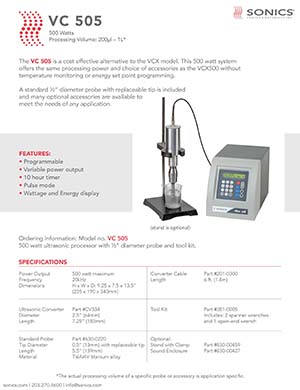

| Design page |  |

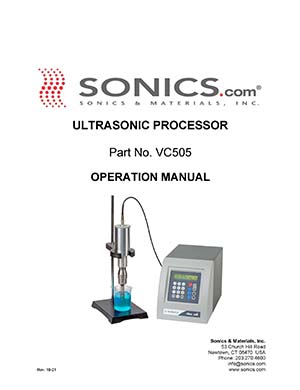

| Manual |  |
